面向3D数字控制柜制造提供的附加值
- 电气工程
- 柜体系统集成
- 机械布局规划
- 布线
- 验证
- 控制柜构建
使用Eplan Pro Panel生成数字孪生初体验

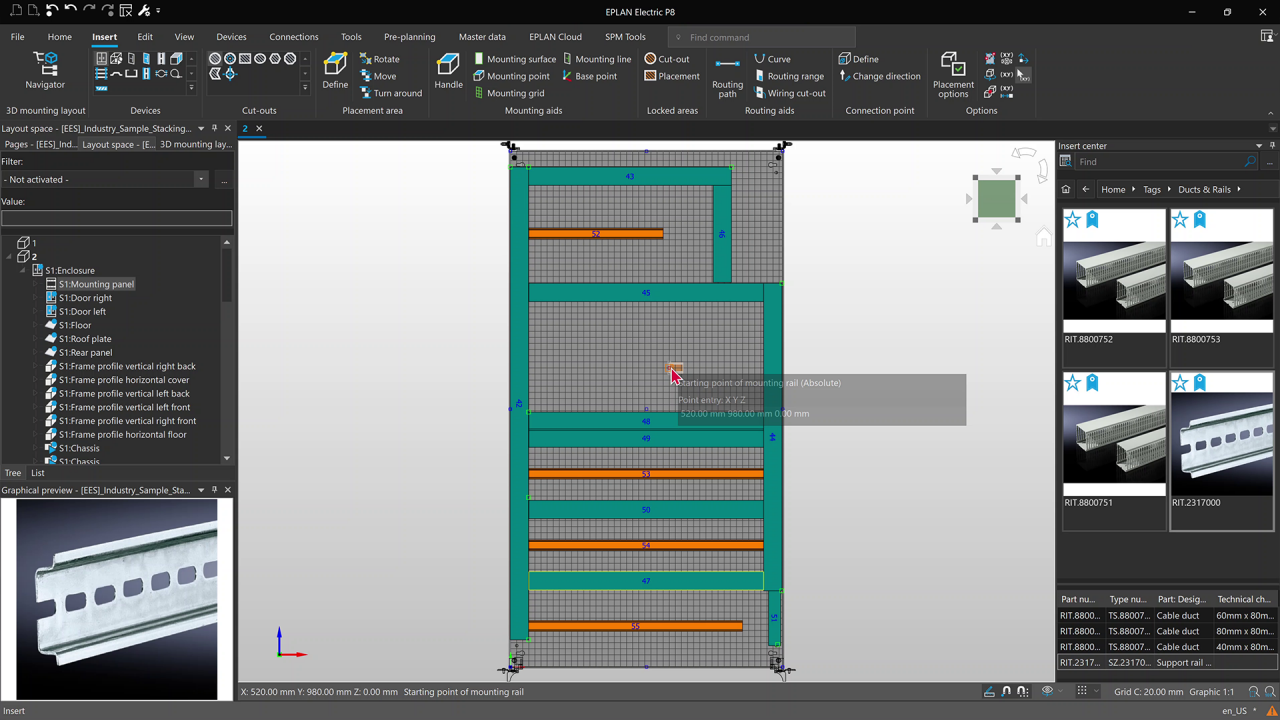

Mechanical mounting panel layout
机械安装板布局
3D机械柜体设计，如同2D设计一样简单直观。
High end PLC panel layout
高端PLC控制柜布局
提供精细化的PLC项目规划与安装板组件布局。

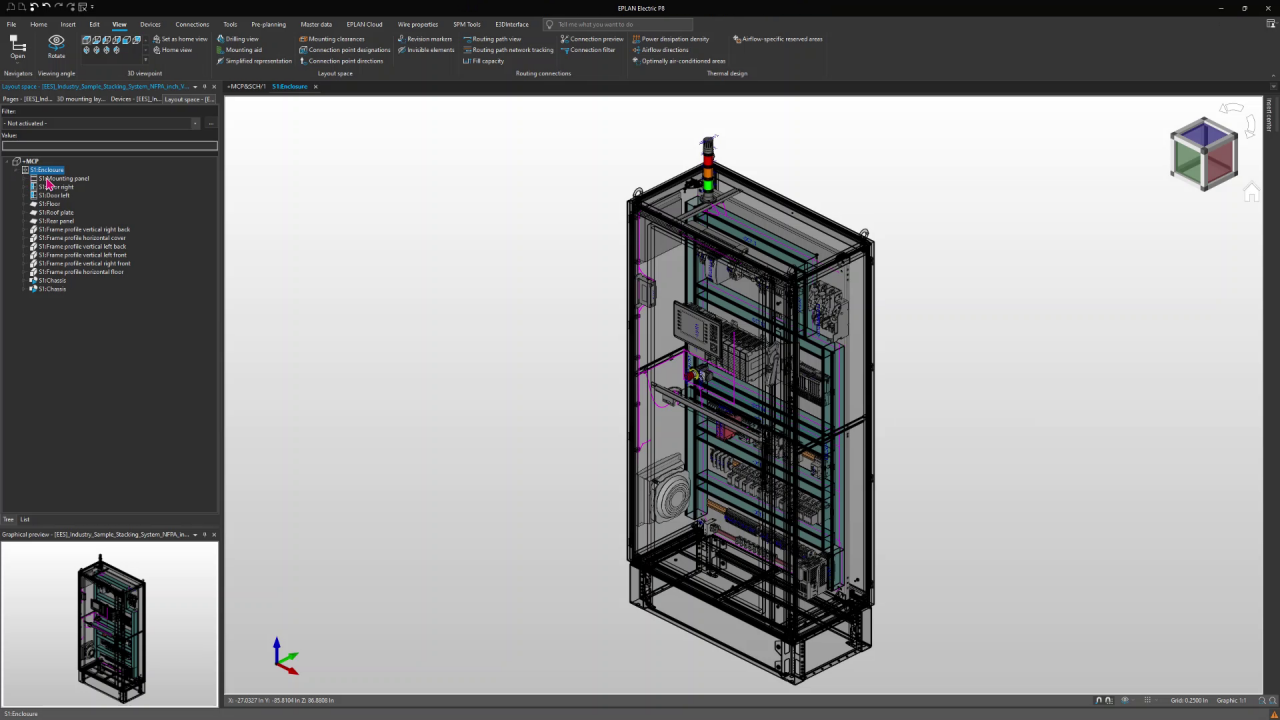

3D layout based digital twin
基于3D布局的数字孪生
Eplan Pro Panel可生成控制柜的完整3D数字化镜像。
Mounting clearance
安装间距
通过可视化提示及对组件所需安装距离的自动校验，为设计提供精准支持。
Drilling information
钻孔加工信息
包含完整钻孔数据的3D布局，为控制柜生产提供从集成制造到加工设备管控的全流程基础。
- 机械安装板布局
- 高端PLC控制柜布局
- 基于3D布局的数字孪生
- 安装间距
- 钻孔加工信息
客户案例
- Conaway Electrical Service
- K4
- Grübl
- Ingela
- PNE Controls
- Kratos Industries
8 times faster creation of 3D panel layouts with the introduction of Eplan.
"Eplan Pro Panel is very intuitive and easy to use. It helps you with your layouts, it’s going to tell you where you are putting components to close to each other because the components have smart data behind them.”
"Eplan Pro Panel is an excellent engineering tool."
“Error rates went immediately to zero, every length of wire length fits perfectly, and the control cabinet also looks much better."
70 % increase in productivity with Eplan solutions.
“It was an easy transition for me as an engineer to see a platform like this that was so well thought out. Eplan is a no-brainer.”
